**NCERT Solutions for Class 11 Physics Chapter 8 Gravitation** ( Click Here )

Topics and Subtopics in **NCERT Solutions for Class 11 Physics Chapter 8 Gravitation****:**

Section Name | Topic Name |

8 | Gravitation |

8.1 | Introduction |

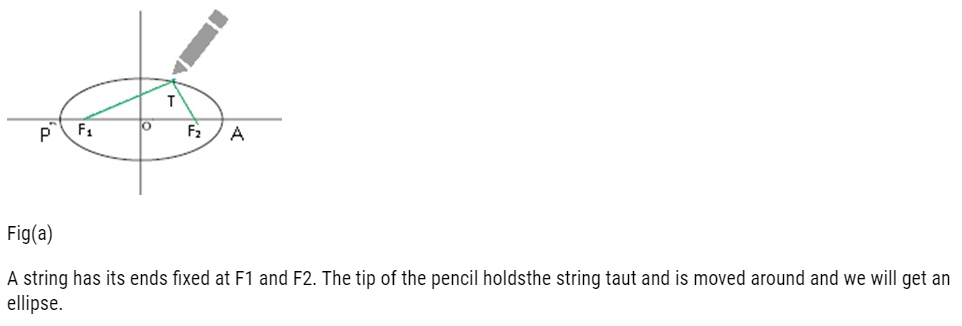

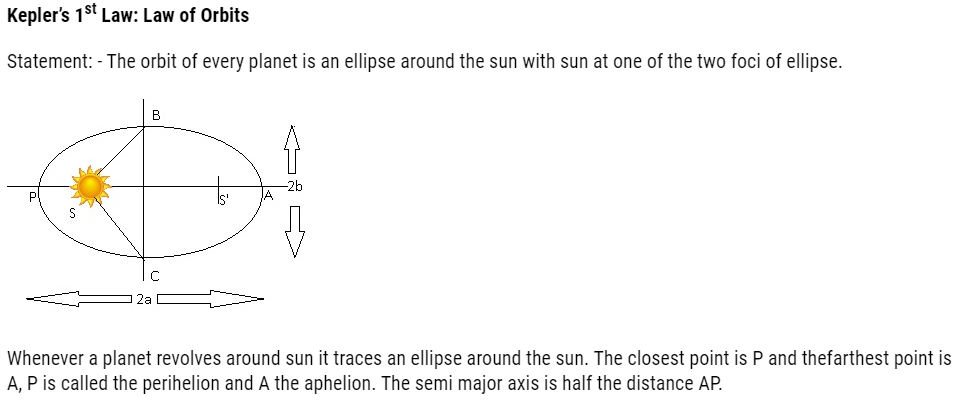

8.2 | Kepler’s laws |

8.3 | Universal law of gravitation |

8.4 | The gravitational constant |

8.5 | Acceleration due to gravity of the earth |

8.6 | Acceleration due to gravity below and above the surface of earth |

8.7 | Gravitational potential energy |

8.8 | Escape speed |

8.9 | Earth satellite |

8.10 | Energy of an orbiting satellite |

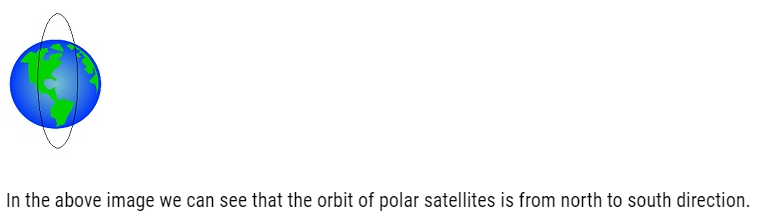

8.11 | Geostationary and polar satellites |

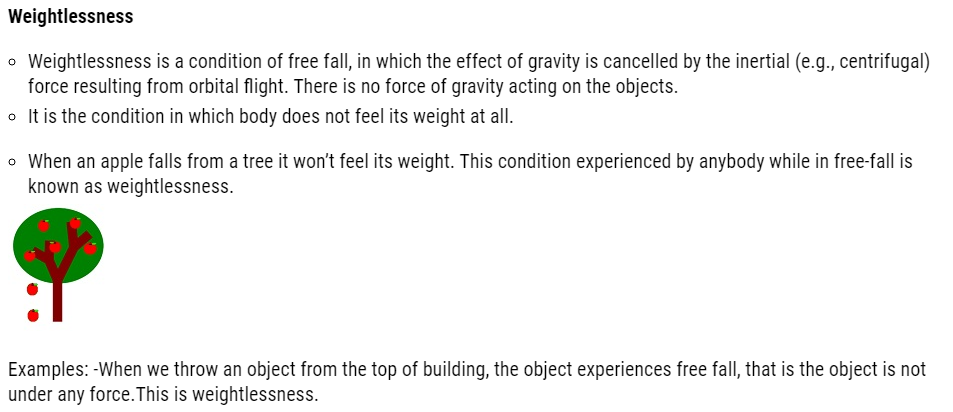

8.12 | Weightlessness |

**Introduction** ( Class 11 Physics Gravitation )

- Whenever we throw an object towards the sky it will fall back onto the ground.
- For Example: – A ball comes down when thrown up. Rain drops fall towards the ground; Planets revolve in an elliptical orbit around sunetc.

Planets revolving in the elliptical orbit.

Leaves fall off the tree.

- There is a force due to which all things are attracted towards the earth. This force is known as Gravitation.

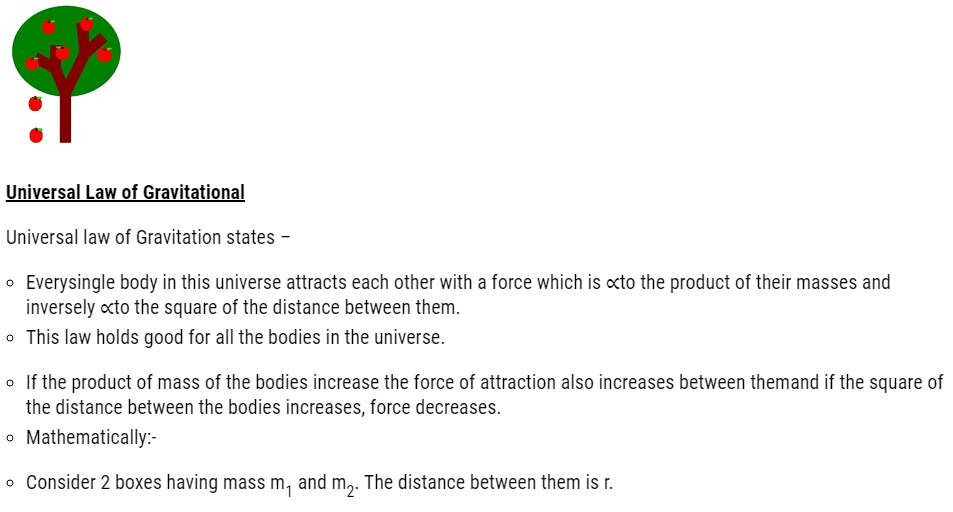

- Gravitation is the force of attractionbetween all masses in the universe, especially the force of attraction exerted by the earth on all the bodies near its surface.
- In this chapter we will take a look at gravitation force, its laws, and we will also study about the planetary motion.

**Gravitational Constant**

__Newton’s view of Gravitation__

- Newtonwas the first scientist who studied the force of gravitation.
- According to him there is a force which is exerted by the surface of the earth because of which all the objects are attracted towards the surface of the earth.

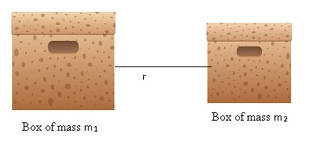

- He also concluded that all objects in this universe attract each other with a force. This force is Gravitation force.

- F ∝ m
_{1}m_{2} - Force is ∝to the product of masses of 2 bodies.
- F ∝ 1/r
^{2} - Force is inversely proportional to the square of the distance between the 2 bodies.

- Combining above equations:-
- F ∝ m
_{1}m_{2}/r^{2} **F= G m**_{1}m_{2}/r^{2}

Where G = universal Gravitational constant.

- Its value is constant and it never changes.
- m
_{1}and m_{2}are masses of 2 bodies. - r = distance between the bodies.

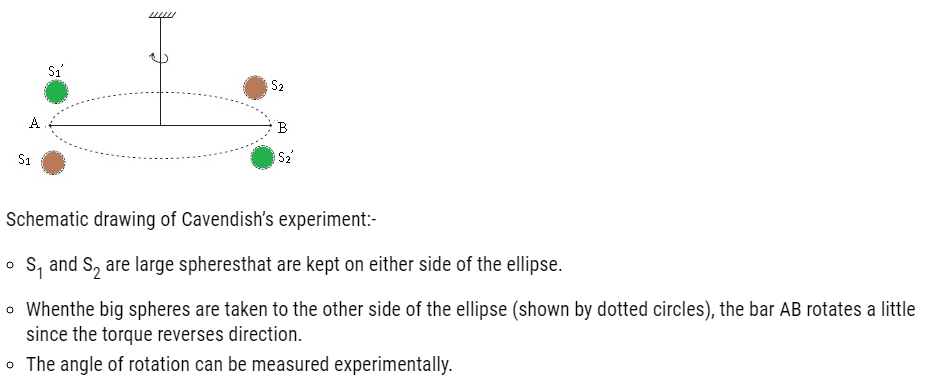

__Gravitational Constant: Cavendish experiment__

- Cavendish performed an experiment to calculate the value of G.
- To calculate the value of G he took a wooden plank and attached two 2 balls on either side of the plank and hung this with a thin thread from the top.
- He introduced 2 very big balls and those balls are near the smaller balls.
- He observed that the small balls got attracted to big balls and wooden plank started rotating and as a result the thin thread started twisting.
- This happened because of force of attraction between the small balls and bigger balls.
- He observed that :-

- Plank rotates till twisting force becomes equal to the gravitational force between the balls.

𝛕 = G m_{1}m_{2}/r^{2}

**LƟ = G m _{1}m_{2}/r^{2}**

- By using the above equation he calculated the value of G,

**G= 6.67×10**^{-11}Nm^{2}/kg^{2 }- Units of G :
**Nm**^{2}/kg^{2}

** Problem:- **Calculate the gravitational force of attraction between 2 lead balls of mass 20kg and 10kg separated by a distance of 10cm?

** Answer**: m

_{1}= 20kg , m

_{2}=10kg , r=10cm = 10/100 = 0.1m

G=6.67×10^{-11}Nm^{2}/kg^{2}

F=G m_{1}m_{2}/r^{2}

= 6.67×10^{-11}x 20×10 / (0.1)^{2}

**F = 1.3 x 10 ^{-6}N**

**Acceleration due to gravity of the earth**

- Acceleration attained due to gravity of earth.
- All the objects fall towards the earth because of gravitational pull of the earth.
- And when abody is falling freely, it will have some velocity and therefore it will attain some acceleration. This acceleration is known as acceleration due to gravity.
- It is a vector quantity.
- Denoted by ‘g’.
- Its value is 9.8m/s
^{2}.

Example:-Stones falling from a rock will have some velocity because of which some acceleration. This acceleration is due to the force exerted by the earth on the rocks.This is known as acceleration due to gravity.

__Expression for Acceleration due to gravity__

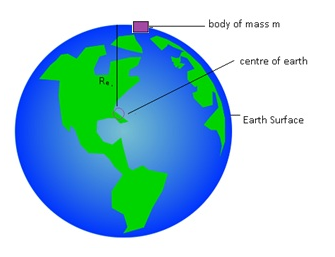

- Consider any object of mass ‘m’ at a point A on the surface of the earth.
- The force of gravity between the body and earth can be calculated as
- F =G m M
_{e }/R_{e}^{2}(1) where- m=mass of the body
- M
_{e}= mass of the Earth - R
_{e}= distance between the body and the earthis same as the radius of the earth

- Newton’s Second law states that
- F=ma (2)

Comparing the equations (1) and (2)

- F=m (G mM
_{e}/R_{e}^{2}) - (G mM
_{e}/R_{e}^{2}) is same as g(acceleration due to gravity) - Therefore, the expression forAcceleration due to gravity.
**g=G M**_{e}/R_{e}^{2}

** Problem**: Calculate the acceleration due to gravity on the (a) earth’s surface (b) at a height of 1.5×10

^{5 }m from the earth surface .Given: R

_{e}=6.4×10

^{6}m; M

_{e }= 5.98×10

^{24 }kg?

** Answer**: –

(a) g= GM_{e}/R_{e}^{2}

= 6.67×10-11×5.98×10^{24}/(6.4 x10^{6})^{2}

= 9.74m/s^{2}

(b) h= 1.5×10^{5}m (given)

g (h)= GM_{e}/(R_{e}+h)^{2}

= 6.67×10-11×5.98×10^{24}/ (6.4 x10^{6}+ 1.5×10^{5})

=9.30m/s^{2}

** Problem:- **Calculate the mass of the moon if the free fall acceleration near its surface is known to be 1.62m/s

^{2}.Radius of the moon is 1738km?

__Answer:__

g=1. 62m/s^{2}

R_{m} = 1738km =1738 x 10^{3} m

G=6.67×10^{-11}Nm^{2}/kg^{2}

g= GM_{m}/R_{m}^{2}

M_{m}=gR_{m}^{2}/G

=1.62x (1738×10^{3})^{2}/6.67×10^{-11}

=7.34×10^{22 }kg

**Acceleration due to gravity below the surface of earth**

- To calculate acceleration due to gravity below the surface of the earth (between the surface and centre of the earth).
- Density of the earth is constant throughout. Therefore,
- ρ = M
_{e }/ (4/3π R_{e}^{3}) equation(1) - where
- M
_{e }= mass of the earth - Volume of sphere= 4/3π R
_{e}^{3} - R
_{e}= radius of the earth.

- M

- As entire mass is concentrated at the centre of the earth.
- Therefore density can be written as

ρ = M_{s }/ (4/3π R_{s}^{3}) equation (2)

- Comparing equation (1) and (2)
- M
_{e}/M_{s}= R_{e}^{3}_{/}R_{s}^{3}where R_{s}= (R_{e}-d)^{3} - d= distance of the body form the centre to the surface of the earth.
- Therefore,
- M
_{e}/M_{s}= Re^{3}/(R_{e}-d)^{3} - M
_{s}= M_{e}(R_{e}-d)^{3}/R_{e}^{3}from equation(3) - To calculate Gravitational force (F) between earth and point mass m at a depth d below the surface of the earth.

Above figure shows the value of g at a depth d. In this case only the smaller sphere of radius (R_{e}–d) contributes to g.

- F= G m M
_{s}/(R_{e}-d)^{2} - g=F/m where g= acceleration due to gravity at point d below the surface of the earth.
- g= GM
_{s}/(R_{e}-d)^{2} - Putting the value of M
_{s}from equation (3)

= GM_{e }(R_{e}-d)^{3}/R_{e}^{3}(R_{e}-d)^{2}

=GM_{e }(R_{e}-d)/R_{e}^{3}

- We know g=GM
_{e}/R_{e}^{2}equation (4)

- g(d) = GM
_{e/}R_{e}^{2 }(1-d/R_{e}) - From equation (4)
**g (d) = g(1-d/R**_{e})

**Acceleration due to gravity above the surface of earth**

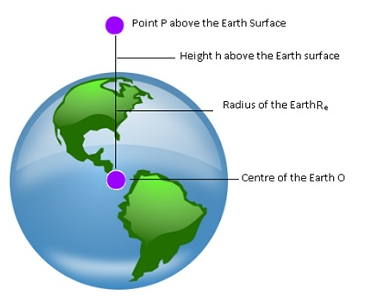

- To calculate the value of acceleration due to gravity of a point mass m at a height h above thesurface of the earth.

Above figure shows the value ofacceleration due to gravity g at a height h above the surface of the earth.

- Force of gravitation between the object and the earth will be
- F= G mM
_{e}/(R_{e}+h)^{2}where

- m = mass of the object, R
_{e}= radius of the earth - g(h) = F/m = GM
_{e}/(R_{e}+h)^{2}= GM_{e}/[R_{e}^{2}(1+h/R_{e})^{2}] - h << R
_{e}(as radius of the earth is very large) - By calculating we will get,

**g(h) = g(1-2h/R _{e})**

The value of acceleration due to gravity varies on the surface, above the surface and below the surface of the earth.__Conclusion: –__

** Problem:- ** ( Gravitation )

Assuming the earth to be a sphere of uniform mass density, how much would a body weigh half way down to the centre of the earth if it weighed 250 N on the surface?

__Answer:__

Weight of a body of mass m at the Earth’s surface, W = mg = 250 N

Body of mass m is located at depth, d=1/2 R_{e}

Where,

= Radius of the Earth

Acceleration due to gravity at depth g (d) is given by the relation:

g’= (1-d/R_{e})g

= (1- R_{e}/2x R_{e}) g= ½ g

Weight of the body depth d,

W’=mg’

=m 1/2g =1/2mg=1/2W

=1/2 x250=125N

** Problem:- **( Gravitation )

A body weighs 63 N on the surface of the earth. What is the gravitational force on it due to the earth at a height equal to half the radius of the earth?

** Answer: **Weight of the body, W = 63 N

Acceleration due to gravity at height h from the Earth’s surface is given by the relation:

g’=g/(1+h/R_{e})^{2}

Where,

g = Acceleration due to gravity on the Earth’s surface

R_{e} = Radius of the Earth

For h= R_{e} /2

g’ = g/(1+ R_{e}/2x R_{e})^{2} = g(1+1/2)^{2} = 4/9g

Weight of a body of mass m at height h is given as:

W’=mg’

=mx4/9g=4/9mg

=4/9W

=4/9×63=28N

**Inertial and Gravitational Mass**

** Inertial Mass:** – Inertial mass is defined as the mass of body by virtue of inertia of mass.

- By Newton’s Law F=ma
- m=F/a where m= inertial mass (as it is because of inertia of a body)

** Gravitational Mass**:-Gravitational mass is defined as the mass of the body by virtue of the gravitational force exerted by the earth.

- By Gravitation Force of attraction –
- F=GmM/r
^{2}- m=Fr
^{2}/GM where

- m=Fr

- F=GmM/r

- m= mass of the object
- F=force of attraction exerted by the earth
- r=distance between object and earth
- M=mass of the earth
- Experimentally, Inertial mass= Gravitational mass

** Problem:** ( Class 11 Physics Gravitation )

Calculate the mass of the sun from the data given below:

Mean distance between Sun and Earth =1.5×10^{11}m

Time taken by earth to complete one orbit around the sun = 1 year

__Answer:__

F= G M_{e}xM_{s}/r^{2}

Given: r= 1.5 x 10^{11}m, v = 2π /r; T= 1 year =365 days =365x24x60x60sec

F_{c}= M_{e}v^{2}/r

F=F_{c}

GM_{e}M_{s}/r^{2} = M_{e}v^{2}/r = M_{e} (2π r)^{2 }/rT^{2}

After calculation:-

M_{s}= 4n^{2}r^{3}/GT^{2}

M_{s}=2×10^{30} kg.

** Problem**: ( Gravitation )

Let us assume that our galaxy consists of 2.5 × 10^{11} stars each of one solar mass. How long will a star at a distance of 50,000 ly from the galactic centre take to complete one revolution? Take the diameter of the Milky Way to be 10^{5} ly.

__Answer__

Mass of our galaxy Milky Way, M = 2.5 × 10^{11} solar mass

Solar mass = Mass of Sun = 2.0 × 10^{36} kg

Mass of our galaxy, M = 2.5 × 1011 × 2 × 10^{36 }= 5 ×10^{41} kg

Diameter of Milky Way, d = 10^{5} ly

Radius of Milky Way, r = 5 × 10^{4} ly

1ly = 9.46 × 10^{15} m

r =5 × 10^{4 }× 9.46 × 10^{15}

= 4.73 ×10^{20} m

Since a star revolves around the galactic centre of the Milky Way, its time period is

given by the relation:

T= (4 π^{2}r^{3}/G M)^{1/2}

= ((4 x(3.14)^{2}x (4.73)^{ 3}x10^{60})/6.67×10^{-11}x5x10^{41})^{1/2}

= (39.48×105.82×10^{30}/33.35)^{1/2}

=(125.27×10^{30})^{1/2}=1.12×10^{16} s

1year = 365x324x60x60s

1s=1/365x324x60x60 years

Therefore,

1.12×10^{16}/365x324x60x60

=3.35×10^{8} years.

** Problem: –** ( Gravitation )

I_{o}, one of the satellites of Jupiter, has an orbital period of 1.769 days and the radius of the orbit is 4.22 × 10^{8} m. Show that the mass of Jupiter is about one-thousandth that of the sun.

__Answer__

Orbital period of I_{o} =T_{lo} = 1.769 days =1.769x24x60x60s

Orbital radius of I_{o} = R_{Io} = 4.22 × 10^{8} m

Satellite I_{o }is revolving around the Jupiter

Mass of the latter is given by the relation:

M_{j}=4 π^{2}R_{lo}^{3}/G T_{lo}^{2}

Where,

M_{j} = Mass of Jupiter

G = Universal gravitational constant

Orbital radius of the Earth,

T_{e} = 365.25 days = 365.25x24x60x60s

Orbital radius of the Earth,

R_{e} = 1AU = 1.496×10^{11}m

Mass of the Sun is given as:

M_{s}= 4 π^{2}R_{e}^{3}/G T_{e}^{2}

M_{s}/ M_{j }= (4 π^{2}R_{e}^{3}/G T_{e}^{2}) x (G T_{lo}^{2}/4 π^{2}R_{lo}^{3})

= (R_{e}^{3}/ R_{lo}^{3}) x (T_{lo}^{2}/ T_{e}^{2})

= (1.769x24x60x60s/365.25x24x60x60s)^{2} x (1.496×10^{11}m/4.22 × 10^{8} m)

=1045.04

M_{s}/ M_{j} ~ 1000

M_{s} ~ 1000 M_{j}

Hence, it can be inferred that the mass of Jupiter is about one-thousandth that of the Sun.

** Problem: –** ( Gravitation )

How will you ‘weigh the sun’, that is estimate its mass? The mean orbital radius of the earth around the sun is 1.5 × 10^{8} km.

__Answer:__

Orbital radius of the Earth around the Sun, r = 1.5 × 10^{11} m

Time taken by the Earth to complete one revolution around the Sun,

T = 1 year = 365.25 days= 365.25 × 24 × 60 × 60 s

Universal gravitational constant, G = 6.67 × 10^{–11} Nm^{2} kg^{–2}

Thus, mass of the Sun can be calculated using the relation

M=4 π^{2}r^{3}/GT^{2}

= (4x (3.14)^{2}x(1.5×10^{11})^{3})/(6.67×10^{-11} x(365.25 × 24 × 60 × 60))

=133.24×10/6.64×10^{4}

=2.0×10^{30}Kg

Hence, the mass of the Sun is 2 × 1030 kg.

**Gravitational Potential Energy**

- Potential energy is due to the virtue of position of the object.
- Gravitational Potential Energy is due to the potential energy of a body arising out of the force of gravity.
- Consider a particle which is at a point P above the surface of earth and when it falls on the surface of earth at position Q, the particle is changing its position because of force of gravity.
- The change in potential energy from position P to Q is same as the work done by the gravity.
- It depends on the height above the ground and mass of the body.

Stationary roller-coaster

__Expression for Gravitational Potential Energy__

**Case1**:- ‘g’ is constant.

- Consider an object of mass ‘m’ at point A on the surface of earth.
- Work done will be given as :
- W
_{BA}=F X displacement where F = gravitational force exerted towards the earth) - =mg(h
_{2}-h_{1}) (body is brought from position A to B) - =mgh
_{2}-mgh_{1} **W**_{AB}=V_{A}-V_{B}- where
- V
_{A}=potential energy at point A - V
_{B}= potential energy at point B

- V
- From above equation we can say that the work done in moving the particle is just the difference of potential energy between its final and initial positions.

**Case2**:-‘g’ is not constant.

- Calculate Work done in lifting a particle from r = r
_{1}to r = r_{2}(r_{2}> r_{1}) along a vertical path, - We will get , W=V (r
_{2}) – V (r_{1})

**Conclusion**: –

- In general the gravitational potential energy at a distance ‘r’ is given by :

**V(r) = -GM _{e}m/r + V_{o}**

- where
- V(r) = potential energy at distance ‘r’
- V
_{o}= At this point gravitational potential energy is zero. - Gravitational potential energy is ∝ to the mass of the particle.

**Gravitational Potential** ( Class 11 Physics Gravitation )

- Gravitational Potential is defined as the potential energy of a particle of unit mass at that point due to the gravitational force exerted byearth.
- Gravitational potential energy of a unit mass is known as gravitational potential.
- Mathematically:
**G**_{potential}= -GM/R

** Problem**: ( Gravitation )

Choose the correct alternative:

Acceleration due to gravity increases/decreases with increasing altitude.

Acceleration due to gravity increases/decreases with increasing depth. (assume the earth to be a sphere of uniform density).

Acceleration due to gravity is independent of mass of the earth/mass of the body.

The formula –G M_{m }(1/r_{2}– 1/r_{1}) is more/less accurate than the formula mg(r_{2}– r_{1}) for the difference of potential energy between two points r_{2}and r_{1} distance away from the centre of the earth.

__Answer:__

(a)Decreases

(b)Decreases

(c)Mass of the body

(d)More

Explanation:

- Acceleration due to gravity at depth h is given by the relation:

g_{h} = (1- 2h/R_{e})g

Where,

R_{e} = Radius of the Earth, g = acceleration due to gravity on the surface of the earth.

It is clear from the given relation that acceleration due to gravity decreases with an increase in height.

- Acceleration due to gravity at depth d is given by the relation:

g_{d}=(1-d/R_{e})g

It is clear from the given relation that acceleration due to gravity decreases with an increase in depth.

- Acceleration due to gravity of body of mass m is given by the relation: g=GM/r
^{2}

Where,

G = Universal gravitational constant

M = Mass of the Earth

R = Radius of the Earth

Hence, it can be inferred that acceleration due to gravity is independent of the mass of the body.

- Gravitational potential energy of two points r
_{2}and r_{1}distance away from the centre of the Earth is respectively given by:

V (r_{1}) = – G mM/r_{1}

V (r_{2}) = -G mM/r_{2}

Therefore,

Difference in potential energy, V = V(r_{2}) – V(r_{1}) =-GmM (1/r_{2} – 1/r_{1})

Hence, this formula is more accurate than the formula mg (r_{2}– r_{1}).

** Problem**:- ( Class 11 Physics Gravitation )

Two earth satellites A and B each of mass m are to be launched into circular orbits earth’s surface at altitudes 6400km and 1.92X10^{4} km resp. The radius of the Earth is 6400km.Find (a) The ratio of their potential energies and (b) the ratio of their kinetic energies. Which one has greater total energy?

** Answer**:-

- m
_{a}= mass of satellite A

m_{b}=mass of satellite B

h_{a}=6400km, h_{b}=1.92X10^{4} km

R_{e}=6400km

Potential Energy = -GM_{e}m/ (R_{e}+h)

For A (P.E)_{A} = -GM_{e}m/ (6400+6400)

=-GM_{e}m/12800 —(1)

For B(P.E)_{B} = -GM_{e}m/(6400+1.92X10^{4})

-GM_{e}m/ (6400+19200) —(2)

Divide 1 by 2 we will get

(P.E)_{A /}(P.E)_{B} = 2 : 1

- (K.E)
_{A}= GMm/2×12800 (3)

(K.E)_{B}= GMm/2(1.92 X10^{4 }+6400) (4)

Dividing (3) by (4)

(K.E)_{A}/(K.E)_{B }= GMm/(12800) x 2(1.92 X10^{4 }+6400)/ GMm

(K.E)_{A}/ (K.E)_{B }= 2:1

- Total Energy of A = – GMm/2r r=12800km

Total Energy of B = – GMm/2r r=(1.92×10^{4} +6400)km

Total energy of B is greater than A.

** Problem**: – A rocket is fired vertically with a speed of 5 km s

^{–1}from the earth’s surface. How far from the earth does the rocket go before returning to the earth? Mass of the earth = 6.0 × 10

^{24}kg; mean radius of the earth = 6.4 × 10

^{6}m; G= 6.67 × 10

^{–11}N m

^{2}kg

^{–2}.

** Answer: **Velocity of the rocket, v = 5 km/s = 5 × 10

^{3}m/s

Mass of the Earth, M_{e} = 6.0 × 10^{24} kg

Radius of the Earth, R_{e}=6.4 × 10^{6}m

Height reached by rocket mass, m = h

At the surface of the Earth,

Total energy of the rocket = Kinetic energy + Potential energy

= 1/2mv^{2}+(-GM_{e}m/R_{e})

At highest point h,

v=0

And Potential Energy = – (GM_{e}m/R_{e}+h)

Total energy of the rocket

=0+ – (GM_{e}m/R_{e}+h)

=-(GM_{e}m/R_{e}+h)

Total energy of the rocket

From the law of conservation of energy, we have

Total energy of the rocket at the Earth’s surface = Total energy at height h.

1/2mv^{2}+(-GM_{e}m/R_{e}) = – GM_{e}m/R_{e}+h

1/2v^{2} = GM_{e}(1/ R_{e} – 1/ R_{e}+h)

By calculating

1/2v^{2} = gR_{e}h/R_{e}+h

Where g=GM/R_{e}^{2} = 9.8m/s^{2}

Therefore,

v^{2}(R_{e}+h) = (2gR_{e}H)

v^{2}R_{e}=h (2gR_{e}-v^{2})

h=R_{e}-v^{2}/ (2gR_{e}-v^{2})

=6.4 × 10^{6}x(5×10^{3})^{2}/2×9.8×6.4×10^{6}-(5×10^{3})^{2}

h=1.6×10^{6}m

Height achieved by the rocket with respect to the centre of the Earth

=R_{e}+h

=6.4 × 10^{6}x1.6×10^{6}

=8.0×10^{6}m

The distance of the rocket is 8 × 10^{6} m from the centre of the Earth.

** Problem: –** Two heavy spheres each of mass 100 kg and radius 0.10 m are placed 1.0 m apart on a horizontal table. What is the gravitational force and potential at the mid-point of the line joining the centres of the spheres? Is an object placed at that point in equilibrium? If so, is the equilibrium stable or unstable?

__Answer:__

- 0;
- –2.7 × 10
^{–8}J /kg; - Yes;
- Unstable

Explanation:-

Any object placed at point X will be in equilibrium state, but the equilibrium is unstable. This is because any change in the position of the object will change the effective force in that direction.

** Problem:-** ( Class 11 Physics Gravitation )

Two stars each of one solar mass (= 2× 10^{30} kg) are approaching each other for a head on collision. When they are a distance 10^{9} km, their speeds are negligible. What is the speed with which they collide? The radius of each star is 10^{4} km. Assume the stars to remain undistorted until they collide. (Use the known value of G).

__Answer:-__

Mass of each star, M = 2 × 10^{30} kg

Radius of each star, R = 10^{4} km = 10^{7} m

Distance between the stars, r = 10^{9} km = 10^{12}m

For negligible speeds, v = 0 total energy of two stars separated at distance r

=-GMM/r + 1/2mv^{2}

=-GMM/r + 0 (i)

Now, consider the case when the stars are about to collide:

Velocity of the stars = v

Distance between the centres of the stars = 2R

Total kinetic energy of both stars = 1/2Mv^{2} + 1/2Mv^{2} = Mv^{2}

Total potential energy of both stars =-GMM/2R

Total energy of the two stars =Mv^{2} – GMM/2R (ii)

Using the law of conservation of energy, we can write:

Mv^{2} – GMM/2R =- GMM/r

v^{2}=-GM /r + GM/2R = GM (-1/r + 1/2R)

=6.67×10^{-11} x 2 x10^{30}(-1/10^{12} + 1/2×10^{7})

=13.34×10^{19}(-10^{-12}+5×10^{-8})

=13.34×10^{19}x 5 x 10^{-8}

=6.67×10^{12}

v=√6.67×10^{12}= 2.58×10^{6}m/s

** Problem:- **A 400kg satellite is in circular orbit of radius 2R

_{E}about the Earth. How much energy is required to transfer it to circular orbit of radius 4R

_{E}?What are the changes in the kinetic and potential energies?

__Answer: __

E_{i}= – GM_{e}m/2R_{E}

E_{f }= – GM_{e}m/4R_{E}

ΔE = E_{f} – E_{i}

=- GM_{e}m/2R_{E}(1/4-1/2)

ΔE =GM_{e}m/8 R_{E}

In terms of ‘g’

ΔE = gm R_{E}/8

By putting the values and calculating

ΔE = 3.13 x 10^{9}J

The energy which is required to transfer the satellite to circular orbit of radius 4R_{E} is 3.13 x 10^{9}J.

Change in Kinetic energy Δk=k_{f} – k_{i}

Δk = 3.13 x 10^{9}J

Change in Potential energy ΔV= 2xΔE = -6.25x109J

**Planetary Motion** ( Class 11 Physics Gravitation )

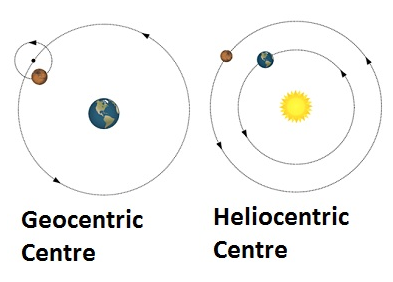

- Ptolemy was the first scientist who studied the planetary motion.
- He gave geocentric model. It means all the planets, stars and sun revolve around the earth and earth is at the centre.
- Heliocentric model was proposed by some Indian astronomers.
- According to which all planets revolve around the sun.
- Nicholas proposed the Nicholas Copernicus modelaccording to which all planets move in circles around the sun.
- After Nicholas one more scientist named Tycho Brahe did lot of observations on planets.
- Finally came Johannes Kepler who used Tycho Brahe observations and he gave Kepler’s 3 laws of Gravitation.
- These 3 laws became the basis of Newton’s Universal law of Gravitation.

__Kepler’s 1 ^{st} law Vs. Copernicus Model__

- According to Copernicus planets move in circular motion whereas according to Kepler planets revolve in elliptical orbit around the sun.
- Copernicus model is based on one special case because circle is a special case of ellipse whereas Kepler’s laws aremore of ageneral form.
- Kepler’s law also tells us about the orbits which planets follow.

__To Show ellipse is a special form of Circle__

- Select two points F1 and F2.
- Take a pieceof string and fix its ends at F
_{1}and F_{2}. - Stretch the string taut with the help of a pencil and then draw a curve by moving the pencil keeping the string taut throughout. Fig. (a).
- The resulting closed curve is an ellipse. For any point T on the ellipse, the sum of distances from F
_{1}and F_{2}is a constant. F_{1},F_{2}are called the foci. - Join the points F
_{1}and F_{2,}and extend the line to intersect the ellipse at points P and A as shown in Fig. (a). - The centre point of the line PA is the centre of the ellipse O and the length PO = AO, which is also known as the semimajor axis of the ellipse.
- For a circle, the two foci merge onto one and the semi-major axis becomes the radius of the circle.

**Kepler’s 2 ^{nd} law: Law of Areas**

Statement:-The line that joins a planet to the sun sweeps out equal areas in equal intervals of time.

- Area covered by the planet while revolving around the sun will be equal in equal intervals of time. This means the rate of change of area with time is constant.
- Suppose position and momentum of planet is denoted by ‘r’ and ‘p’ and the time taken will be Δt.
- ΔA=1/2xrxvΔt (where vΔt is distance travelled by a planet in Δt time.)
- ΔA / Δt =1/2(
**r**x**v**) - where
- (Linear momentum) p=mv or we can write as
**v**=**p**/m- =1/2m(
**r**x**p**) - =1/2 L/2m where L= angular momentum(It is constant for any central force)

**ΔA / Δt = constant (**This means equal areas are covered in equal intervals of time).

**Kepler’s 3 ^{rd}Law: Law of periods**

Statement: –

- According to this law the square of time period of a planet is ∝ to the cube of the semi-major axisof its orbit.
- Suppose earth is revolving around the sun then the square of the time period (time taken to complete one revolution around sun) is ∝ to the cube of the semi major axis.
- It is known as Law of Periods as it is dependent on the time period of planets.
- Derivation of 3
^{rd}Law: assumption: The path of the planet is circular. - Let m=mass of planet
- M= mass of sun
- According to Newton’s Law of Gravitation:
- F= GMm/r
^{2} - F
_{c}=mv^{2}/r - where
- F
_{c}=centripetal force which helps the planet to move around sun in elliptical order. - F = Fc
- GMm/r
^{2}= mv^{2}/r where r=radius of the circle - GM/r= v
^{2}(1) - v= 2 πr/T
- Squaring both the sides the above equation
- v
^{2}=4 π^{2}r^{2}/T^{2} - putting the value (1)
- GM/r=4 πr
^{2}/T^{2} - T
^{2}= (4 π^{2}r^{3}/GM) where (4 π^{2}/GM) = constant **T**(In ellipse semi-major axis is same as radius of the circle)^{2}=r^{3}

** Problem**: – Suppose there existed a planet that went around the sun twice as fast as the earth.What would be its orbital size as compared to that of the earth?

** Answer**: Lesser by a factor of 0.63

Time taken by the Earth to complete one revolution around the Sun,

T_{e }= 1 year

Orbital radius of the Earth in its orbit, R_{e} = 1 AU

Time taken by the planet to complete one revolution around the Sun,

T_{p}=1/2T_{e}=1/2 year

Orbital radius of the planet = R_{p}

From Kepler’s third law of planetary motion, we can write:

(R_{p} /R_{e})^{3} = (T_{p}/T_{e})^{2}

R_{p} /R_{e }= (T_{p}/T_{e})^{ 2/3}

=((1/2)/1)^{ 2/3} =(0.5)^{ 2/3} = 0.63

Hence, the orbital radius of the planet will be 0.63 times smaller than that of the Earth.

** Problem**: A Saturn year is 29.5 times the earth year. How far is the Saturn from the sun, if theearth is 1.50 ×10

^{8}km away from the sun?

** Answer: **Distance of the Earth from the Sun, R

_{e}= 1.5 × 10

^{8}km = 1.5 × 10

^{11}m

Time period of the Earth = T_{e}

Time period of Saturn, T_{s} = 29. 5 T_{e}

Distance of Saturn from the Sun = R_{s}

From Kepler’s third law of planetary motion, we have

T^{2}= (4 π^{2} r^{3}/GM) ^{1/2}

For Saturn and Sun, we can write

(R_{s}^{3}/ R_{e}^{3}) = T_{s}^{2}/ T_{e}^{2}

R_{s} = R_{e}(T_{s}/ T_{e})^{2/3}

=1.5 × 10^{11}(29. 5)^{ 2/3}

=1.5 × 10^{11}x9.55

=14.32×10^{11}m

Hence, the distance between Saturn and the Sun is 1.432×10^{12}m.

** Problem:-**Let the speed of the planet at the perihelion P in Fig. be v

_{P}and

Sun-planet distance SP is r_{P}. Relate {r_{P}, v_{P}} to the corresponding quantities at

aphelion {r_{A}, v_{A}}. Will the planet take equal times to traverse BAC and CPB?

** Answer** The magnitude of the angular momentum at P is Lp = mp rp vp, since inspection tells us that r

_{p}and v

_{p}are mutually perpendicular. Similarly,

L_{A} = m_{p} r_{A} v_{A}. Fromangular momentum conservation

m_{p} r_{p} v_{p} = m_{p} r_{A} v_{A}

orv_{p}/v_{A}=r_{a}/r_{p}

Since r_{A}> r_{p}, v_{p}> v_{A} .

The area SBAC bounded by the ellipse andthe radius vectors SB and SC is larger than SBPCin Fig. From Kepler’s second law, equal areasare swept in equal times. Hence the planet willtake a longer time to traverse BAC than CPB.

**Escape Velocity** ( Class 11 Physics Gravitation )

- Escape velocity is the minimum velocity that a body must attain to escape the gravitational field of the earth.
- Suppose if we throw a ball,it will fall back. This is happening due to the force of gravitation exerted on the ball by the surface of the earth due to which the ball is attracted towards the surface of the earth.
- If we increase the velocity to such an extent that the object which is thrown up will never fall back.This velocity is known as escape velocity.

The same ball is thrown with a velocity that itescapes the force of gravitation of earth and does not come back. This velocity is known as escape velocity.

- Mathematically:-
- Suppose we throw a ball and the initial velocity of the ball is equal to the escape velocity such that ball never comes back.
- Final Position will be infinity.
: At Infinity__At Final Position__- Total Energy (∞) = kinetic Energy (∞) + PotentialEnergy (∞)
- KineticEnergy (∞) = ½ mv
_{f}^{2}where v_{f}=final velocity - Potential Energy (∞) = -GMm/r + V
_{0} - where M=mass of the earth, m= mass of the ball,

V_{0}=potential energy at surface of earth, r=∞ r=distance from the centre of the earth.

- Therefore: – Potential Energy (∞) =0
- Total Energy (∞) =½ mv
_{f}^{2}(1) :-__At initial position__- E. = 1/2mv
_{i}^{2} - E= -GMm/ (R
_{e}+h) + V_{0} - Where h= height of the ball from the surface of the earth.
- Total Energy (initial) = 1/2mv
_{i}^{2}– GMm/ (R_{e}+h) (2) - According to law of conservation of energy
- Total Energy (∞) =Total Energy (initial)
- ½ mv
_{f}^{2}= 1/2mv_{i}^{2}– GMm/ (R_{e}+h) - As L.H.S = positive
- 1/2mv
_{i}^{2}– GMm/ (R_{e}+h) ≥ 0 - 1/2mv
_{i}^{2}= GMm/ (R_{e}+h) - By calculating
- v
_{i}^{2}= 2GM/ (R_{e}+h) - Assume Ball is thrown from earth surface h<<R
_{e} - This implies R
_{e}+h is same as Re as we can neglect h. - Therefore,v
_{i}^{2}= 2GM/ (R_{e}) - Or
**v**_{i}= √(2GM/R_{e}) - This is the initial velocity with which if the ball is thrown it will never fall back on the earth surface.

**In terms of ‘g’**

- g = GM/R
_{e}^{2} - Escape velocity can be written as

**V _{e}= √2gR_{e}**

__Example of Escape Velocity: No atmosphere on moon__

- Earth Escape velocity= V
_{e}= √2gR_{e} - Moon Escape velocity = V
_{e}= √2g_{m}R_{m}where R_{m}is the radius of the moon. - g
_{m}=1/6 g_{e}; R_{m}= 1/4 R_{e} - (V
_{e})_{moon}= √2 g_{m}R_{m}= √2xg/6x R_{e}/4 - After calculating we will get:

**(V _{e})_{moon} = 1/5 (V_{e})_{earth} = 2.3km/s**

- As this velocity is very less, the molecules cannot accumulate on the moon so there is no atmosphere on the moon.

** Problem**: – Does the escape speed of a body from the earth depend on

(a) the mass of the body,

(b) the location from where it is projected,

(c) the direction of projection,

(d) the height of the location from where the body is launched?

__Answer__

(a) No

(b) No

(c) No

(d) Yes

Escape velocity of a body from the Earth is given by the relation:

V_{e}= √2gR_{e}

g = Acceleration due to gravity

R = Radius of the Earth

It is clear from equation (i) that escape velocity is independent of the mass of the body and the direction of its projection. However, it depends on gravitational potential at the point from where the body is launched. Since this potential marginally depends on the height of the point, escape velocity also marginally depends on these factors.

** Problem**: A comet orbits the Sun in a highly elliptical orbit. Does the comet have a constant (a) linear speed, (b) angular speed, (c) angular momentum, (d) kinetic energy, (e) potential energy, (f) total energy throughout its orbit? Neglect any mass loss of the comet when it comes very close to the Sun.

__Answer:-__

(a) No

(b) No

(c) Yes

(d) No

(e) No

(f) Yes

Angular momentum and total energy at all points of the orbit of a comet moving in a highly elliptical orbit around the Sun are constant. Its linear speed, angular speed, kinetic and potential energy varies from point to point in the orbit.

** Problem: –** The escape speed of a projectile on the earth’s surface is 11.2 km s

^{–1}. A body is projected out with thrice this speed. What is the speed of the body far away from the earth? Ignore the presence of the sun and other planets.

__Answer:-__

Escape velocity of a projectile from the Earth, v_{esc} = 11.2 km/s

Projection velocity of the projectile, vp = 3v_{esc}

Mass of the projectile = m

Velocity of the projectile far away from the Earth = v_{f}

Total energy of the projectile on the Earth=1/2m_{p}^{2} – 1/2mv_{esc}^{2}

Gravitational potential energy of the projectile far away from the Earth is zero.

Total energy of the projectile far away from the Earth =1/2mv_{f}^{2}

From the law of conservation of energy, we have,

1/2m_{p}^{2} – 1/2mv_{esc}^{2} = 1/2mv_{f}^{2}

v_{f} = √v_{p}^{2}-v_{esc}^{2}

=√(3 v_{esc})^{2} –(v_{esc})^{2}

=√8 v_{esc}

=31.68km/s

** Problem:-** ( Class 11 Physics Gravitation )

Calculate the escape velocity on the surface of the moon? Given that the radius of the moon is 1.7×10^{6}m and the mass of the moon is 10^{22}kg.

__Answer:-__

V_{e}= √2GM/R_{e}

R_{m} = 1.7×10^{6}m

M= 10^{22}kg

G=6.67×10^{-11}Nm^{2}/kg^{2}

V_{e }= √2×6.67×10^{-11}x10^{22}/1.7×10^{6}

=2.4×10^{3}m/s

The escape velocity on the surface of the moon is 2.4×10^{3}m/s.

** Problem:- **What is the escape velocity from Jupiter given that the mass is 300 times that of the Earth’s and its radius is 10times larger?

__Answer:-__

M_{J}=300M_{e}

R_{J}=10R_{e}

V_{e}= √2GM_{e}/R_{e} = V_{e}= √2GM_{J}/R_{J}

= √2Gx300M_{e}/10x R_{e}

After putting the values,

=√30×11.2m/s

=61.3km/s

The escape velocity on the surface of the Jupiter is 61.3km/s.

__Artificial Satellites:__

- Human built objects orbiting the earth for practical uses. There are several purposes which these satellites serve.
- Example:- Practical Uses of Artificial satellites
- Communication
- Television broadcasts
- Weather observation
- Military support
- Navigation
- Scientific research

__Determining the Time Period of Earth Satellite__

- Time taken by the satellite to complete one rotation around the earth.
- As satellites move in circular orbits there will be centripetal force acting on it.
- F
_{c}=mv^{2}/R_{e}+h It is towards the centre. - Where
- h= distance of satellite form the earth
- F
_{c}= centripetal force

- F
_{G}= GmM_{e}/(R_{e}+h)^{2} - where
- F
_{g}= Gravitation force - m= mass of the satellite
- M
_{e }= mass of the earth

- F
- F
_{c}=F_{G} - mv
^{2}/R_{e}+h = GmM_{e}/(R_{e}+h)^{2} - v
^{2}=GM_{e}/R_{e}+h **v=√ GM**(1)_{e}/R_{e}+h- This is the velocity with which satellite revolve around the earth.
- The satellite covers distance = 2 π(R
_{e}+h) with velocity v. - T=2 π(R
_{e}+h)/v - 2 π(R
_{e}+h)/**√**GM_{e}/R_{e}+h From (1) **T=2 π(R**_{e}+h)^{3/2}/**√ GM**_{e})

__Special Case:-__

- h<< R
_{e}(satellite is very near to the surface of the earth)

- Then T=2 π
**√**R_{e}^{3}/GM_{e} - After calculating

**T=**2 π**√ R _{e}/g**

**Energy of an orbiting satellite**

- m= mass of the satellite, v=velocity of the satellite
- E.=1/2mv
^{2} - =1/2 m (GM
_{e}/R_{e}+h) by using (1) **E. =1/2 GM**_{e}/(R_{e}+h)**E.= -GM**_{e}m/(R_{e}+h)- Total Energy = K.E. + P.E.
- =1 /2 GM
_{e}/(R_{e}+h) + -GM_{e}m/(R_{e}+h) **E**.=**GM**_{e}m/2(R_{e}+h)- Conclusion:-
- P.E. = 2 x K.E.
- Total energy is negative. This means the satellite cannot escape from the earth’s gravity.

** Problem**: – Choose the correct alternative:

If the zero of potential energy is at infinity, the total energy of an orbiting satellite is

negative of its kinetic/potential energy.

The energy required to launch an orbiting satellite out of earth’s gravitational influence is more/less than the energy required to project a stationary object at the same height (as the satellite) out of earth’s influence.

** Answer**:

(a)Kinetic energy

(b)Less

(a)Total mechanical energy of a satellite is the sum of its kinetic energy (always positive) and potential energy (may be negative). At infinity, the gravitational potential energy of the satellite is zero. As the Earth-satellite system is a bound system, the total energy of the satellite is negative.

Thus, the total energy of an orbiting satellite at infinity is equal to the negative of its

Kinetic Energy.

(b)An orbiting satellite acquires a certain amount of energy that enables it to revolve around the Earth. This energy is provided by its orbit. It requires relatively lesser energy to move out of the influence of the Earth’s gravitational field than a stationary object on the Earth’s surface that initially contains no energy.

** Problem:** ( Class 11 Physics Gravitation )

The planet Mars has two moonsPhobos and delmos. (i) Phobos has a period 7 hours, 39 minutes and an orbital radius of 9.4 × 103 km. Calculate the massof mars. (ii) Assume that earth and mars move in circular orbits around the sun,with the Martian orbit being 1.52 times the orbital radius of the earth. What isthe length of the Martian year in days?

__Answer:__

By using T^{2} = k (R_{E} + h)^{3 } where (k=4 π^{2} / GM_{E})

T^{2}= (4 π^{2} R^{3}/GM_{m})

M_{m}= 4 π^{2} R^{3}/ G T^{2}

=4 x (3.14)^{2}x (9.4)^{3}x10^{18}/ (6.67×10^{-11 }x (459×60)^{2})

=4 x (3.14)^{2}x (9.4)^{3}x10^{18}/ (6.67 x (4.59×6)2×10^{-5})

=6.48×10^{23}kg

(ii) Once again By Kepler’s third law

T_{m}^{2}/T_{e}^{2} = R^{3}_{Ms}/R^{3}_{ES}

Where R_{MS} is the mars -sun distance and R_{ES} is the earth-sun distance.

∴ T_{M} = (1.52^{)3/2} × 365

= 684 days

We note that the orbits of all planets except Mercury, Mars and Pluto are very close to being circular. For example, the ratio of the semi minor to semi-major axis for our Earth is, b/a = 0.99986.

** Problem:- **Weighing the Earth: You are given the following data: g = 9.81 ms

^{–2}, R

_{E}= 6.37× 10

^{6}m, the distance to the moon R = 3.84× 10

^{8}m and the time period of the moon’s revolution is 27.3 days. Obtain the mass of the Earth M

_{E }in two different ways.

__Answer:__

M_{E} = g R_{E}^{2}/G

=9.81 x (6.37x 10^{6})^{2}/6.67x 10^{-11}

= 5.97× 10^{24} kg.

The moon is a satellite of the Earth. From the derivation of Kepler’s third law

=4 π^{2} R^{3}/GM_{E}

M_{E}=4 π^{2} R^{3}/GT^{2}

=(4×3.14×3.14x(3.84)^{3}x1024)/6.67×10^{-11x}(27.3x24x60x60)^{2}

= 6.02 ×10^{24} kg

Both methods yield almost the same answer, the difference between them being less than 1%.

** Problem:- **Express the constant k of in Eq. T

^{2}= k (R

_{E}+ h)

^{3 }where (k=4 π

^{2}/ GM

_{E}) in days and kilometres. Given k = 10

^{–13}s

^{2}m

^{–3}. The moon is at a distance of 3.84 × 10

^{5}km from the earth. Obtain its time-period of revolution in days.

Answer Given

k = 10^{–13} s^{2} m^{–3}

=10^{–13}[d^{2}/ (24x60x60)^{2}] [1/ (1/1000)^{3}km^{3}]

= 1.33 × 10^{–14} d^{2} km^{–3}

Using Eq. T^{2} = k (R_{E} + h)^{3}

- and the given value of k, where (k=4 π
^{2}/ GM_{E}) the time period of the moon is

T^{2} = (1.33 × 10^{-14}) (3.84 × 10^{5})^{3}

T = 27.3 d

Using Eq. T^{2} = k (R_{E} + h)^{3 }also holds for elliptical orbits if we replace (R_{E}+h) by the semi-major axis of the ellipse. The earth will then be at one of the foci of this ellipse.

** Problem:- **Calculate the height of a geostationary satellite from the surface of the earth?

** Answer:- **For any geostationary satellite time period

T = 24hours = 24x60x60s

=86400sec

Orbital velocity v= 2 πR/T

Where R= distance of satellite from the earth. It is given as R =R_{E} + h

F_{c}= mv^{2}/R

F_{G}= GM_{e}m/R^{2}

F_{c} = F_{G}

mv^{2}/R = GM_{e}m/R^{2}

By simplifying,

v^{2}= GM_{e}/R

=4 π^{2}R^{2}/T ^{2}= GM_{e}/R

R^{3} = GM(T^{2}/4 π^{2})

Acceleration due to gravity g =GM/R_{E}^{2}

GM=gR_{E}^{2}

R^{3} = gR_{E}^{2} T^{2}/4 π^{2}

Therefore R= [gR_{E}^{2} T^{2}/4 π^{2}]^{1/3}

By putting the values and calculating,

**R= 42147Km**

R=R_{E}+h

h=R- R_{E}

=(42147 – 6.37 x 10^{3} )

h= 35777km

The height of the geostationary satellite from the surface of the earth is 35777km.

__Polar Satellites__

- These are low altitude satellites.This means they orbit around earth at lower heights.
- They orbit around the earth in North-South direction.Whereas earth is moving from East to West.
- A camera is fixed above this type of satellite so they can view small strips of earth.
- As earth also moves, so at each instance different types of stripes of earth can be viewed.
- Adjacent stripes of earth are viewed in subsequent orbits.
- They are useful in remote sensing, meteorology and environmental studies of the earth.

__Weightlessness in the orbital motion of satellites__

- In case of a satellite that is rotating around the earth.
- There is an acceleration which is acting towards the centre of the Earth.
- This acceleration is known as centripetal acceleration (a
_{c}). - There is also earth’s acceleration which is balancing this centripetal acceleration.
- g=a
_{c}they are equal in magnitude and they are balancing each other.

- g=a
- Inside the satellites there is no acceleration which means everything is moving with uniform velocity.
- Inside an orbiting satellite weightlessness is experienced.

*Related link you must like:-*

Study material for Competition Exam

Mohd. Sharif Qualification : B.Tech (Mechanical Engineering) , Founder of Wisdom Education Academy. Teacher & Career Counselor Blogger, YouTube Creator
